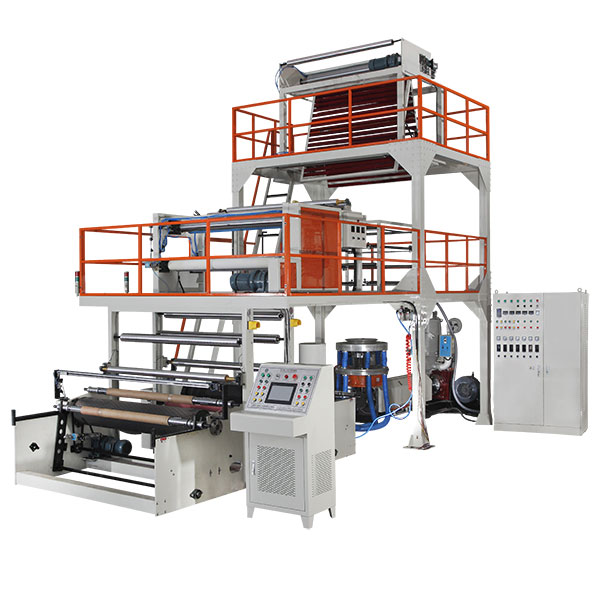

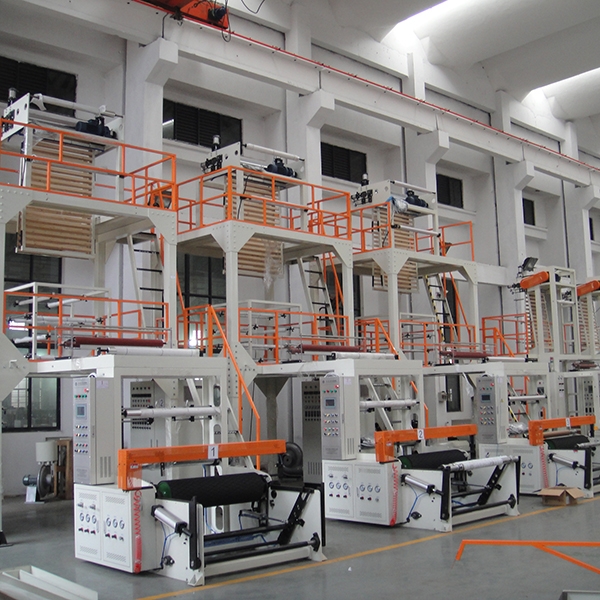

This kind of film blowing machine is bigger than other machines for plastic bag. The three layers agriculture film blowing machine is usually equipped with one knife before rewinding rollers to make it single layer.
We supply this kind of machine for many countries and areas since 1984. We can customize the machine according to customer’s requirements. Hope to cooperate with you.
2.Product parameter|
Screw and barrel |
Diameter 80mm, L=28D |
|
Blowing material |
LDPE/HDPE/LLDPE. Recycled materials and so on |
|
Blowing film width |
1000-1500mm |
|
Blowing film thickness |
LDPE: 0.012-0.3mm |
|
Friction rewinding |
Max rewinding diameter 700mm |
|
Power |
76kw |
|
Total weight |
5600kg |
|
Overall size |
7100mm*3200mm*7200mm |
3.Production feature and application

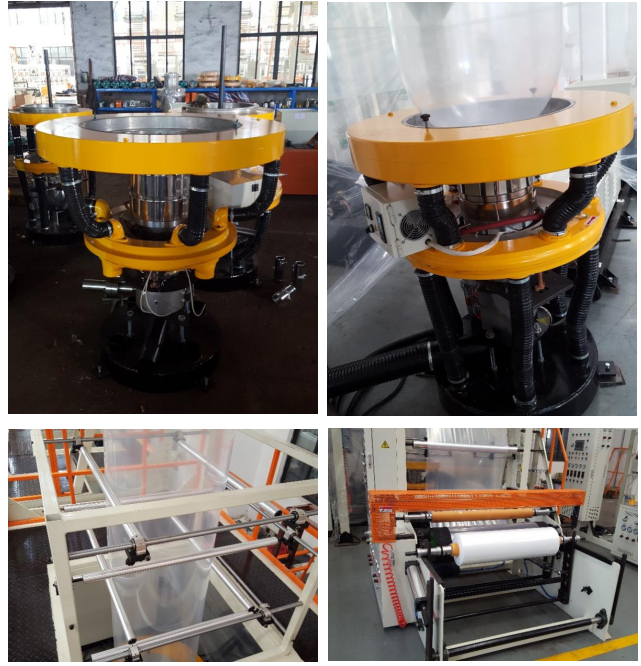

Production feature: this three layer agriculture film blowing machine is equipped with rotating mould and automatic rewinding part. It is usually for LDPE and HDPE materials.

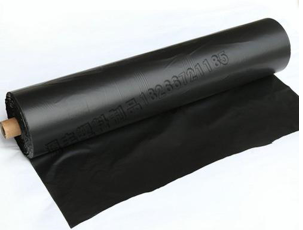

Application: this film is widely used in agricultures for growing vegetables and other plants.
|
Mono layer type |
|||||
|
Model |
SL-50-800 |
SL-55-900 |
SL-65-1200 |
SL-80-1500 |
SL-90-1800 |
|
Extrude Screw size |
50mm |
55mm |
65mm |
80mm |
90 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
50 kg |
60kg |
90 kg |
120 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
|
ABA/AB film blowing type |
|||||
|
Model |
SL-50x2-800 |
SL-55x2-900 |
SL-65x2-1300 |
SL-70x2-1600 |
SL-80x2-1600 |
|
Extrude Screw size |
50mm *2 |
55mm*2 |
65mm*2 |
70mm*2 |
80mm*2 |
|
Film width range |
100-750mm |
300-850mm |
800-1150mm |
1000-1450mm |
1500-1750mm |
|
Output |
80 kg |
90kg |
120 kg |
150 kg |
180 kg |
|
Film thickness |
LDPE：0.012-0.3mm HDPE: 0.01-0.2mm PLA:0.01-0.1mm |
||||
More details are appreciated.
FAQ:
Factory located: wuxi city, jiangsu province
